Model: 2060G / 2060D Form Factor: 4U 60-bayt
EonStor CS 2060G / 2060D
NAS sistemi EonStor CS 2000, yedekleme ve arşivleme gibi çok büyük depolama kapasitesi gerektiren uygulamalar için mükemmel bir seçimdir. Gelişmiş 4 çekirdekli CPU’ya sahip EonStor CS 2000, sürekli büyüyen iş yüklerini işlemek için güvenilir performans ve ölçeklenebilirlik sağlar.
Yüksek Performans
EonStor CS, büyük dosya uygulamalarına en uygun 100+ GB/sn’ye kadar bant genişliği sunar. Üst düzey U.2 NVMe all-flash serileri
cihaz başına 4,1 GB/sn’ye kadar okuma ve 3,1 GB/sn yazma hızlarıyla daha düşük gecikme süresinde daha iyi performans sağlar.
CS, birden çok cihazı tek bir ad alanı altında kümeleyerek ve verileri farklı cihazlar arasında otomatik olarak dengeleyerek
tek cihaz performans sınırlamaları sorunu ve erişim verimliliğini etkin bir şekilde artırır.

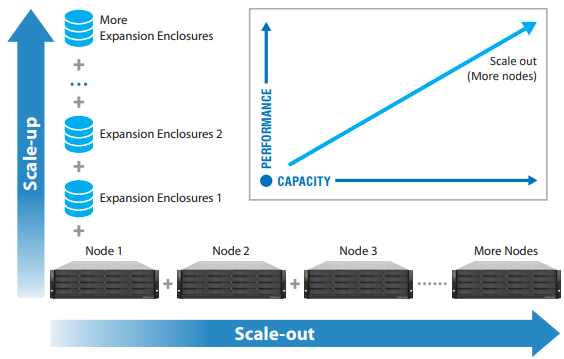

Ölçeklenebilirlik
EonStor CS, giderek artan verilerin yönetilmesine yardımcı olmak için ölçek genişletme özelliği getiriyor. Performansı ve kapasiteyi artırmak için, kümenize ek CS aygıtları veya cihazlar eklemeniz yeterlidir sistem, ilk kurulum sırasında veya sonrasında olsun. Bu esnek ölçekleme seçeneği 144 CS cihazı birbirine bağlar ve
100 PB depolama alanıyla 100 GB/sn okuma-yazma hızı sunar.
Kapasitenizi artırdığınız yerlerde ölçek büyütme genişletmesi de mevcuttur harici genişletme muhafazalarını veya “JBOD,RAID” bir toplamda en fazla 120 sürücüye sahip tek CS cihazı.
High Storage Efficiency
EonStor CS cluster supports hybrid storage that allows SSD and HDD to reside in a system to satisfy the versatile applications’
workloads requirements. Based on the hybrid architecture, EonStor CS can leverage SSDs’ advantage as cache to deliver faster
performance for frequently accessed data, while making better use of HDDs in the other node or expansion enclosure as the
data archiving media, thereby boosting system performance and reducing the total cost of ownership.
In addition, EonStor CS supports automated tiering, which helps you automatically move data between SSDs and HDDs based
on data access frequency. With this feature, you can easily leverage SSDs for high-performance I/Os and HDDs for massive data
archives to optimize storage efficiency.

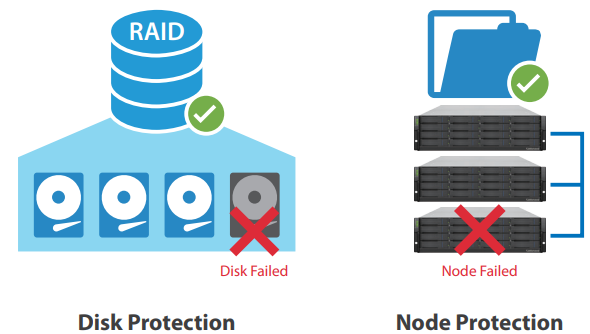

Data Protection
EonStor CS offers full data protection from drives, nodes, to
system backup, providing enterprises with continuous services
while easing data management stress.
At the drive level, EonStor CS incorporated Infortrend’s unique
RAID technology which helps the system to run normally while
ensuring your data is fully protected even when a hard disk gets
damaged. In terms of node protection, EonStor CS supports
Replica and Erasure Code protection mechanisms to generate
redundant data across all nodes.
Intelligent Drive Management
EonStor CS uses an intelligent algorithm to not only reduce the total amount of the write times to SSD to prolong SSD lifespan
but also prevent a simultaneous failure of multiple SSD that causes data loss. In addition, EonStor CS monitors and estimates
SSD’s remaining lifespan and sends out a notification to remind the administrator to replace the SSD which is about to fail.
Easy to Manage and Deploy
EonStor CS comes with a cluster deployment wizard that facilitates system initialization within 30 minutes, after which the cluster
will be ready to go.
EonStor CS provides EonOne, a web-based user interface for centralized management of multiple systems, monitoring
performance and capacity usage, and configuring all related system settings. On the user side, EonStor CS provides the EonView
utility that simplifies shared folder access.
A CS cluster stores dozens of PB of data under a single namespace, allowing IT personnel to centrally manage all the data, thus
eliminating data islands.
Model : CS 2060G / 2060D
Form Factor : 4U 60-bay
Node : G model: Single node D model: Dual nodes
Number of Nodes : 1 to 144
Cache Memory (per Node) : Default DDR4 64GB, up to 256GB
Front-end Network (per Node) : 10GbE (SFP+) x 2 or 10GbE (SFP+) x 4 or 25GbE (SFP28) x 2 or 40GbE (QSFP+) x 2
Internal Network (per Node) : 10GbE (SFP+) x 2 or 25GbE (SFP28) x 2 or 40GbE (QSFP+) x 2
Network Type Combinations
Combination 1: Front-end (onboard 10GbE x 2) + Internal (onboard 10GbE x 2)
Combination 2: Front-end (onboard 10GbE x 4) + Internal (host board 25GbE x 2)
Combination 3: Front-end (onboard 10GbE x 4) + Internal (host board 40GbE x 2)
Combination 4: Front-end (host board 25GbE x 2) + Internal (host board 25GbE x 2)
Combination 5: Front-end (host board 40GbE x 2) + Internal (host board 40GbE x 2)
Combination 6: Front-end (onboard 10GbE x 4 + host board 25GbE x 2) + Internal (host board 25GbE x 2)
Combination 7: Front-end (onboard 10GbE x 4 + host board 40GbE x 2) + Internal (host board 40GbE x 2)
Drive Interface : 12Gb/s SAS
Supported Drives : 3.5″ NL-SAS and SATA HDD
Max. Drive Number : 120 (per node, varies by model)
Data Protection
Disk protection: RAID 5, RAID 6
Node protection: Erasure code (2+1 or 4+1 or 4+2 or 8+1 or 8+2) or Replica (x2 or x3)
Cluster protection: Rsync
Default software features include
- SSD cache: support 1 SAS/SATA SSD per node as cache
- DNS Load Balance: round robin
Optional software features require additional license
- WORM
Automated storage tiering
- 4 tiers per pool
SSD cache
- support 2, 4, 6 or 8 SAS/SATA SSD per node as cache
Advanced DNS Load Balance
- connection number, network throughput, CPU usage
Supported OS : Windows Server 2016, Windows Server 2012 R2, CentOS
Supported Protocols : CIFS/SMB, NFS, FTP
Management
ACL control
Quota management
User account management
Web-based EonOne management software
Microsoft Active Directory (AD), Linux LDAP and NIS authentication
Storage Resource Management to analyze history of resource usage
Notification : Email, SNMP traps
Expansion Enclosures (JBODs) : JB 3060L
Availability and Reliability : SMB Multichannel, Self-healing
Safety Standards
Safety: UL, BSMI, CB
Electromagnetic compatibility: CE, BSMI, FCC
Green Design
80 PLUS-certified power supplies delivering more than 80% energy efficiency
Intelligent multi-level drive spin-down
Power Supply Unit
Power supplies: 4U 60-bay: 1600W (80 PLUS Platinum)
The other form factors: 530W (80 PLUS Bronze)
AC voltage: 4U 60-bay: 200-240VAC @9.6A
The other form factors: 100-127VAC @13.8A to 200-240VAC @9.6A
Frequency: 47-63 Hz
Environmental
Temperature: Operating: 0°C to 35°C
Non-operating: -40°C to 60°C
Altitude:Operating: sea level to 3,660 m (12,000 ft)
Non-operating: sea level to 12,192 m (40,000 ft)
Relative humidity: 5% to 95% non-condensing, operating and non-operating
4U 60-bay: 447.6 x 176 x 840.9 mm
Package Dimensions (W x H x D)
4U 60-bay: 620 x 460 x 1,140 mm
Weight (without HDDs)
4U 60-bay: 123.46 lbs (56.5 kg)
Yönetim ve Uygulama
Kurulum sihirbazı, işlemlerini basitleştirir.
Eonon web arayüzünden merkezi yönetim sağlar.
EonView, paylaşılan klasörlere kolay erişim sağlar.
Verileri tek bir ad alanı altında depolayarak veri karmaşıklığını ortadan kaldırır.
Yüksek Performans
Yeni birimler eklendikçe performans doğrusal olarak artar.
Tek birim performansı 4.1/3.1 GB/s (Okuma/Yazma)
Tek küme performansı 100 GB/s
Otomatik-dengeleme işlevi, verileri tüm birimlere eşit olarak dağıtır ve veri erişim performansını artırır.
Bilgi Güvenliği
Infortrend RAID teknolojisi, verileri sürücü hasarlarından ve aynı anda birden fazla SSD’nin arızalanmasından korur.
Çoğaltma ve Silme Kodu verilerinizi cihaz arızasından korur.
Bozuk birimlerdeki verileri geri yüklemek için kendi kendini onarma özelliği.
Rsync (Folder Remote Replication) uzaktan dosya yedekleme özelliği.
Depolama Verimliliği
Hibrit depolama (SSD ve HDD) kullanılan uygulamaya göre uygun diski seçer.
SSD ve HDD’den kolayca en iyi şekilde yararlanmak için otomatik sıralama.
Küçük dosyalara erişimi artırmak için SSD önbellek.
Sürücü Yönetimi
SSD ömrünü iyileştirmek için akıllı düzenleme.
Kalan SSD ömrünü analiz eder ve zamanında değiştirilmesi için arızalanmak üzere olan SSD’yi bildirir.
Ölçeklenebilirlik
Çevrimiçi kapasite genişletmeyi destekler.
Ağ başına 144 cihaza kadar genişletme.
Cihaz başına 120 adede kadar sabit diskle genişletme.
100PB’ye kadar kapasite.
